Basic Parameter

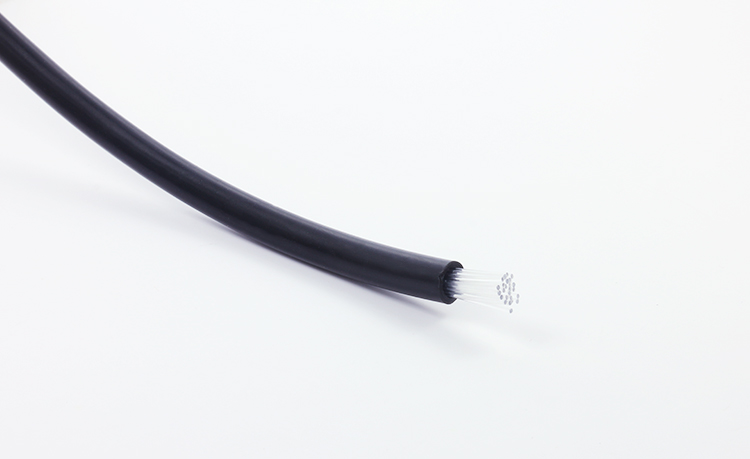

1) Material : PMMA plastic optic fiber
2) Isolation Material : PE , PVC, TPE ( customized is available)
3) Plug : Toslink plug, Metal Jacket , or PVC injection molding shell
4) Length : 0.5M-50M
5) Outer diameter : 2.2 ,4.0 ,5.0 ,6.0 ,7.0 ,8.0mm
7) Package : PE bag , gift box packing , customized is available
8) Apply to : Multimedia audio system , hd video playback systems , DVDCDblue-ray player , Internet TV digital TV satellite TV , 3D4D high definition digital cinema , car planeship and other multimedia entertainment systems
Technical Specification
| Parameter | Unit | Numerical value |
| Fiber optic core diameter | mm | Φ1.o;customized acceptΦ0.25/Φ0.50/Φ0.75 |
| Fiber optic core material | PMMA | |
| Finished product diameter | mm | Φ2.2;Customized acceptΦ2.2mm-10.0mm |
| Outer material | Antiflaming CPE,Antiflaming PE,Antiflaming PVC,Nylon PA,TPU,TPR | |
| Outer color | Black;custormized accept other colors | |
| Application lightwave | nm | 650 or 530 |
| Attenuation | dB/KM | <180 refraction |
| Refractive index | S1 | |
| Bend radius | 5 X core Diameter | |
| Numerical aperture | 0.5;customized accept 0.3-0.6 | |
| Incident angle | 60° | |
| Splice loss | dB | <0.5 |
| Tensile strength | N | ≤1.0dB(0~80N) |
| Vibration | ≤1.0dB(5~50HZ,1.5mm amplitude) | |
| Working temperature | °C | -55°C~+85°C |
| Storage temperature | °C | -55°C~+85°C |
| Quality standard | Europe ROHS,USA standard(SONET.OC-48)Japan standard(0.653) China industry standard(YD/T1447-2006) |
